Foundations 101: What Your Garden Room Needs Beneath the Surface

A garden room may dazzle with sleek glazing, cedar cladding, and designer lighting, yet its long-term strength always comes from a component most owners never see—the foundation. Beneath the surface lies a system that carries dead loads from walls and roof, live loads from furniture and people, and environmental forces like wind uplift or frost heave. Choose the wrong base and your contemporary hideaway can twist, sag, or flood long before its time. Select the right one and you’ll enjoy decades of trouble-free use, higher property value, and lower maintenance. This guide demystifies garden room foundations from soil testing to insulation so you can make confident, code-compliant decisions and avoid costly callbacks.

1. Why Foundations Matter More Than Finishes

Finishes are cosmetic; foundations are structural. A base transfers weight evenly into the ground, prevents settlement cracks in plaster and glazing, stops damp from wicking upward, and keeps door frames square so bifolds slide smoothly even after a hard winter. Because garden rooms typically weigh less than brick extensions, their foundations are lighter—but still critical. Skimping here risks uneven floors, warped cladding, and water ingress that ruin interior fit-outs and electronics. In short, pay for the ground you cannot see before you pay for the oak desk you can.

2. Understanding Loads: Dead, Live, and Environmental

Engineers classify structural forces as dead loads (the static mass of timber, glass, insulation, and roofing), live loads (occupants, gym equipment, storage boxes), and environmental loads such as wind pressure, snow, and frost. A lightweight SIPs studio may carry modest dead load, yet if you add a tiled roof or rooftop solar array the weight profile changes dramatically. Likewise, a home gym with free weights produces higher point loads than a writing den. Knowing these figures early informs footing depth, slab thickness, and reinforcement requirements so that the foundation isn’t over- or under-engineered.

3. Soil Types and Why a Site Investigation Comes First

Clay swells when wet and shrinks during drought, sand shifts under vibration, peat compresses under modest weight, and made-up ground hides rubble voids that swallow concrete. A simple plate test with a steel rod and core sample reveals bearing capacity and water table depth. In many suburban gardens a geo-survey isn’t legally required, yet spending a modest fee on soil analysis can prevent subsidence claims worth tens of thousands. The result determines whether you need a 100 mm structural slab, 200 mm reinforced strip footings, helical piles, or ground screws installed to refusal depth.

4. Concrete Slab Foundations: The All-Round Workhorse

A poured concrete slab remains the garden-room industry’s default choice because it’s familiar, durable, and doubles as a finished floor. After marking out, builders excavate to firm sub-soil, add 100–150 mm of Type 1 MOT hardcore, compact, lay damp-proof membrane, install steel mesh if specified, then pour 100–150 mm of C25-C30 concrete. Expansion joints allow seasonal movement while perimeter insulation boards reduce thermal bridging. Slabs excel on flat plots with good access for a mixer truck but require careful drainage planning so rainfall doesn’t pool against new walls.

5. Strip Foundations: Ideal for Heavier or Brick-Clad Builds

When a garden room features masonry piers, brick slips, or a substantial fireplace, strip footings offer concentrated support under load-bearing walls. Trenches 300–600 mm wide are dug to frost-safe depth, usually 450–750 mm in UK climates, filled with concrete, then brought up with blockwork to finished floor level. The void between strips is backfilled with compacted hardcore or suspended timber joists. This method uses less concrete than a full slab yet demands precise trench lines and extra labour, making it most economical for larger, heavier structures.

6. Ground Screw Foundations: Speedy and Sustainable

Ground screws—galvanised steel piles twisted into soil by hydraulic machinery—deliver load-bearing capacity without excavation, spoil removal, or concrete. They suit back gardens with limited access because installers carry each screw by hand and drive it within minutes. A galvanised steel frame or timber chassis bolts to the screw heads, creating an immediate working platform. Advantages include minimal site disturbance, excellent ventilation under the floor (discouraging damp), and full removability if you ever relocate. However, screws struggle in dense rubble or large stones and require specialist structural calculations to satisfy building control on heavier buildings.

7. Helical or Driven Pile Systems for Challenging Ground

Where soil is weak, marshy, or underlain by expansive clay, engineers may specify mini-piles—steel shafts screwed or driven to depths of several metres until reaching load-bearing strata. A reinforced concrete ring beam then ties pile caps together, supporting walls above. Though costlier, piles guarantee stability on problematic ground and often prove cheaper than extensive dig-outs and over-spec slabs that still risk settlement. They’re also useful on sloping sites because piles of different lengths create a level datum without major earthworks.

8. Timber Frame Bases: Lightweight but Requires Vigilance

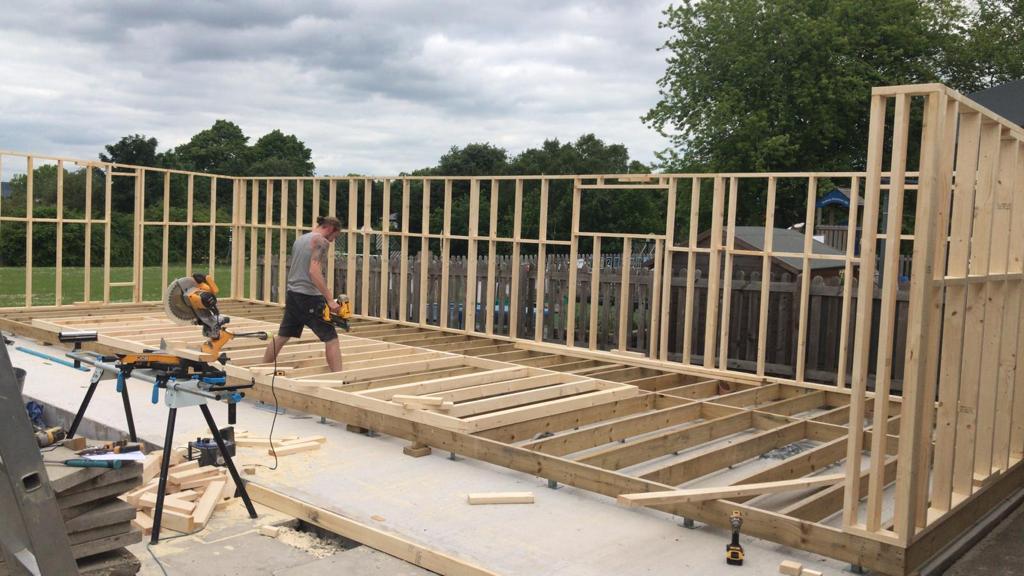

A pressure-treated timber sub-frame on pad stones or small concrete piers can work for micro studios under 10 m² or temporary buildings exempt from planning. Rails sit on one-metre centres with 47 × 150 mm joists, marine-grade plywood, and breathable membrane. The base is quick and low cost, yet timber’s vulnerability to ground moisture and pests means you must maintain airflow and keep soil clear of horizontal members. If you plan plumbing for bathrooms, retrofitting drains through a timber deck complicates matters, so choose this route only when weight is low and service runs are simple.

9. Drainage and Damp Proofing: Keeping Moisture at Bay

Even the strongest foundation fails if water undermines it. French drains, perforated pipes wrapped in geotextile and laid around the perimeter, channel groundwater away. A 1200-gauge damp-proof membrane beneath slabs prevents rising damp; for suspended floors, vapour barriers and cross-ventilation do the job. Where external ground levels are high, consider a land drain tied into a soakaway at least five metres from the building. Skirting trims should finish 150 mm above finished ground to stop splash-back, and any decking must be structurally independent so rainwater cannot track into walls.

10. Insulation and Thermal Breaks Under the Floor

A well-insulated floor saves energy in offices and studios heated all year. Rigid PIR boards or extruded polystyrene laid below the slab or between joists deliver U-values of 0.18 W/m²K or better, complying with Part L regulations. Remember to lap membrane edges and tape joints to maintain vapour control. At wall junctions, vertical insulation upstands create a thermal break, stopping cold bridging that can lead to condensation and mould at skirting level.

11. Integrating Services: Planning Conduits and Ducts Early

Electrical armoured cable, Cat-6 data lines, and water pipes must leave the main house, pass underground, and emerge through the slab or void exactly where they’re needed. Forget to plan and you’ll be chiselling duct runs later or settling for ugly surface trunking. Before concrete is poured, lay 63 mm smooth-bore ducts with draw strings so electricians can pull cables later. For waste water, install 110 mm PVC pipe at 1:40 fall toward your existing soil stack or pump chamber. Insulate water feeds to prevent winter freezing.

12. Building Regulations and Compliance Essentials

If your garden room exceeds 30 m² or includes sleeping accommodation, UK Building Regulations Part A (structure), Part C (moisture), Part E (sound), Part L (energy), and Part P (electrics) apply. Even smaller rooms sometimes trigger Part B (fire) if built close to boundaries. A structural engineer’s calculations may be required for piles, deep slabs, or steel portal frames supporting bifold openings wider than 3.6 m. Notify building control or use an approved inspector early; foundations are among the first elements they must sign off before concrete placement.

13. Cost Breakdown: Budgeting for the Groundwork

Foundation costs vary by method, soil, and access. Expect £80–£120 per m² for a standard 100 mm reinforced slab on good ground, rising to £140–£200 per m² for strip footings and block + beam floors. Ground screws start around £90 per screw; a 20 m² office might need twenty screws, plus a galvanised chassis, totalling £3,500–£4,500. Mini-piles with ring beam can exceed £6,000 before you’ve laid a single wall panel. Always include skip hire, spoil removal, and concrete pump hire if a mixer cannot reach your pour area directly.

14. Sustainability: Concrete vs Low-Carbon Alternatives

Concrete production contributes eight percent of global CO? emissions, yet its durability often offsets initial impact over a building’s lifespan. Still, if you want a greener base, consider ground screws or recycled aggregate concrete blended with GGBS (ground-granulated blast-furnace slag) that cuts embodied carbon by up to 70 percent. Timber bases sourced from FSC-certified forests have low embodied energy but demand vigilant maintenance to match concrete’s longevity.

15. Common Pitfalls and How to Avoid Them

Cutting corners on excavation depth leads to frost heave lifting footings; neglecting compaction results in voids that settle later; mis-calculating finished floor height causes damp when patios are relaid higher. Skipping a soil test often forces expensive remedial work after hairline cracks appear. Choosing the cheapest contractor without checking insurance or references may void warranties. Finally, forgetting to book building control sign-offs at foundation stage can halt your project until costly exposure inspections are performed.

16. Future-Proofing: Designing for Upgrades and Maintenance

Run spare data conduits now to avoid digging later for smart home upgrades. Overspec the cable duct so you can pull a heavier SWA feed if you add an EV charger. Leave crawl-space hatches or removable skirt panels around raised bases for annual inspections. Install an access point in the land drain for high-pressure jetting should silt build up. A little foresight ensures your foundation supports evolving technology and lifestyle changes without disruptive retrofits.

Conclusion: Build on Certainty, Not Assumption

The allure of a garden room lies above ground, yet its longevity is decided below. From soil surveys and load calculations to drainage, insulation, and service ducts, foundations form a silent partnership with the structure they support. Investing time and money here prevents creaking floors, sticking doors, and damp corners that tarnish daily use and resale value. Whether you embrace a traditional concrete slab, eco-friendly ground screws, or engineered piles for difficult terrain, insist on professional advice, regulatory compliance, and meticulous execution. Do that, and your garden room will stand straight, dry, and comfortable for decades—proof that greatness truly begins beneath the surface.
